Raking Machine
Raking Machine
By Seeing today’s era in the poultry development of getting short labour in the Poultry farms, has designed the Litter Regenerator known as Raking Machine which has been specifically designed & developed for Poultry Litter Management. Raking is necessary for Poultry to keep good health of the birds and hence the profitability.
It is invented for broiler and turkey farms, it helps producers keep the litter dry in the best condition possible all the time. As the machine moves through the farm it will allow the air to act in the litter, mixing and drying it. This in turn reduces the moisture in the litter. It does not allow formation of lumps. This helps to reduce accumulation of CO2 & Ammonia in the farm.
ENQUIRY NOW
Key Benefits:
- Greater Profitability
- Animal Welfare
- Better Breeding Environment
- Designed for litter treatment
- Reduction of Management cost
- Better Working condition
- Designed to be clean
- Long Duration
- Electricity/ Power Savings
- 5000 Sq. ft in ½ hour
- Low Noise

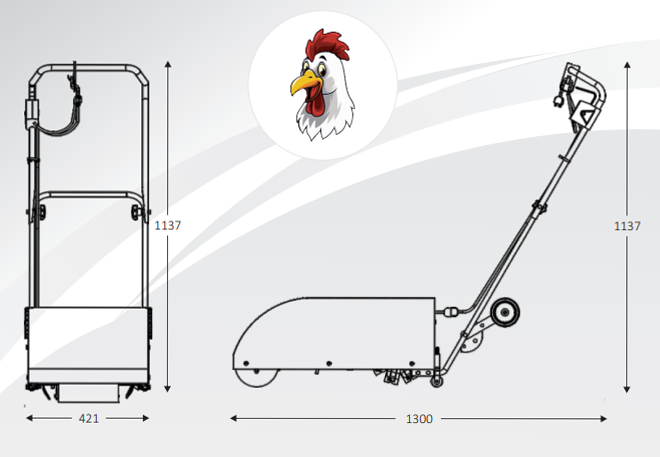

Functional Description of Rotary Tiller (Raking Machine):
| Number of Blades | 4 |
| Blade Diameter (mm) | 205 |
| Blade Material | Steel |
| Maximum Till Width (mm) | 320 |
| Maximum Till Depth (mm) | 100 |
| No Load Speed (rpm) | 200 |
| Reverse Rotation | No |
| Power Transmission | Belt Drive |
| Operating Sound (dB) | <30 |
| Safety Switch | Yes |
| Trolley Wheels | Yes |
| Wheel Adjustment Position | 3 |
| Trolley Wheel Size (mm) | 150 |
| Detachable Handle | Yes |
| Rust Resistant | Yes |
| Cable Restraint Clip | Yes |
| Power Source | Electrical |
| Power Supply (220 V-250 V) | Single Phase, 50Hz |
| Waterproof Connection | Yes |
| Motor (0.5 Hp) | Marathon Make |
| Assembly Require | Yes |
| Assemble Dimension | 1220 x 460 x 1040 |
| Assembly Weight (Kg.) | 35 Kg |
| Packing Dimension (mm) | 810 x 490 x 530 |
| Packing Weight (Kg.) | 45 Kg |
| HS Code | 84328020 |
