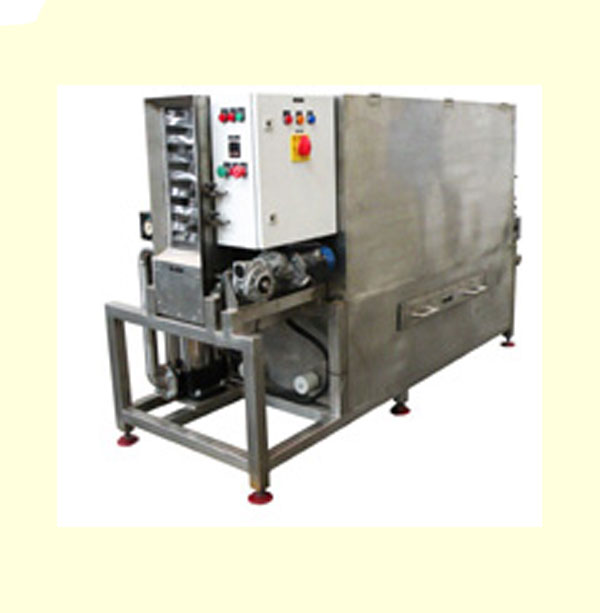

Hatchery Tray Washing Machine
Hatchery Tray Washing Machine
We have been able to achieve strong market goodwill as a trusted manufacturer of Hatchery Tray Washing Machine. This machine is used for Hatcher Tray Washer.
Our hard-working manpower uses optimum quality mild steel and aluminium, sourced from trusted vendors to design and manufacture Hatchery Tray Washing Machine.
We verify this Hatcher Tray Washing Machine on construction and performance parameters to offer the best choice to clients. Also, we offer this machine at best prices.
ENQUIRY NOW
System Description :
- Main Construction: The closed construction is in SS304 with 250 litres tank capacity, 4 Kw pump and POM conveyor chain material to reduce the friction load and avoid the temp losses. The system is equipped with two heater elements with digital display.
- Rising Section: In the rising section the system has flat nozzles with 0.5 mm cavity to have spread spray. The adjustable features give advantage to adjust the nozzles as per requirement.
- Conveyor System: The conveyor material is POM, which is food grade material to maintain the hygiene in the machine. Due to POM the conveyor chain weight is reduced, which reduces the motor power and hence the energy consumption.
Features & Benefits :
- Automatic Adjustable Temperature control.
- Low water consumption, due to closed construction.
- Superior cleaning due to adjustable nozzles.
- leaning Capacity upto 60 Standard metal trays.
- 60 large plastic tray OR 120 small plastic trays per hour.
- Low electricity consumption due to POM conveyor chain.
- Automatic water level digital indicator.
- Easy to clean nozzles.
- Easy to operate the machine.
Specifications :
| S.NO. | System Description | Specifications | Specifications |
|---|---|---|---|
| Model Number | SH 60120 | TH 120320 | |
| 1 | Overall Machine Dimensions mm | 3200L X 1500W X 1800H | 4500L X 2000W 1500H |
| 2 | Power Supply | 415V,50Hz, 3 Phase | 415V,50Hz, 3 Phase |
| 3 | Electrical Control | 24V DC | 24V DC |
| 4 | Washing Capacity(Metal Tray) | 60 Tray per Hour | 160 Tray per Hour |
| 5 | Washing Capacity(Big Plastic Tray) | 60 Tray per Hour | 160 Tray per Hour |
| 6 | Washing Capacity(Small Plastic Tray) | 120 Tray per Hour | 320 Tray per Hour |
| 7 | Water Temp | 60-80 Degrees | 60-80 Degrees |
| 8 | Heater Element Capacity | 4Kw X 2 | 4Kw X 2 |
| 9 | Temperature Control | Automatic | Automatic |
| 10 | Temperature Indication | Digital | Digital |
| 10 | Water Tank Capacity | 250 Ltrs | 500 Ltrs |
| 12 | Water level Indicator | Automatic | Automatic |
| 13 | No. of Nozzles | 40 Nos | 80 Nos |
| 14 | MOC of Chain | POM(Food grade) | POM(Food grade) |
| 15 | MOC of Sprockets | POM(Food grade) | POM(Food grade) |
| 16 | Water Pressure | 12 kg | 12 kg |
| 17 | Water Discharge | 5 LPM | 8 LPM |
| 18 | Multistage Water Pump | 4k | 8 Kw |
